Project by Shashank Bangalore Lakshman
Description
This project acts as a template engine. It allows you to select an artistic effect from a Javascript (p5js) library and outputs a fully functional web directory (HTML + JS) ready to run locally.
How to Use
-
Generate a Sketch
- Run the generator script to choose an effect. The server will start automatically.
python3 generator.py - Enter the index of the effect to be applied to live web camera video
- Allow browser window to access live web camera video
- Run the generator script to choose an effect. The server will start automatically.
Gallery

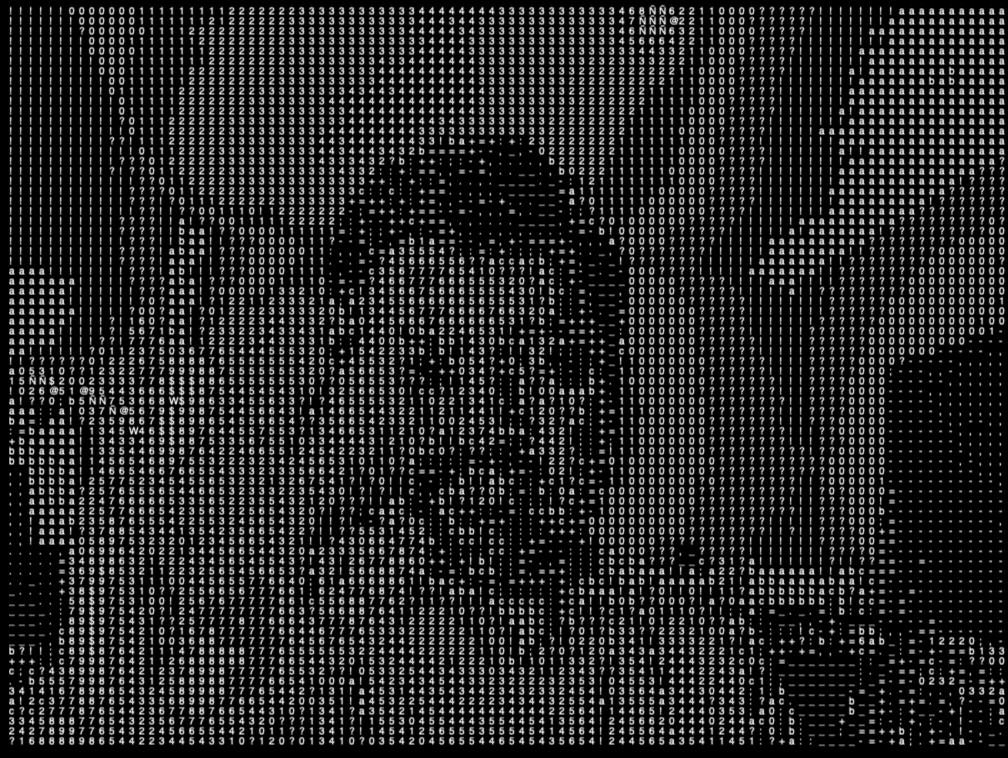

 ASCII Matrix |

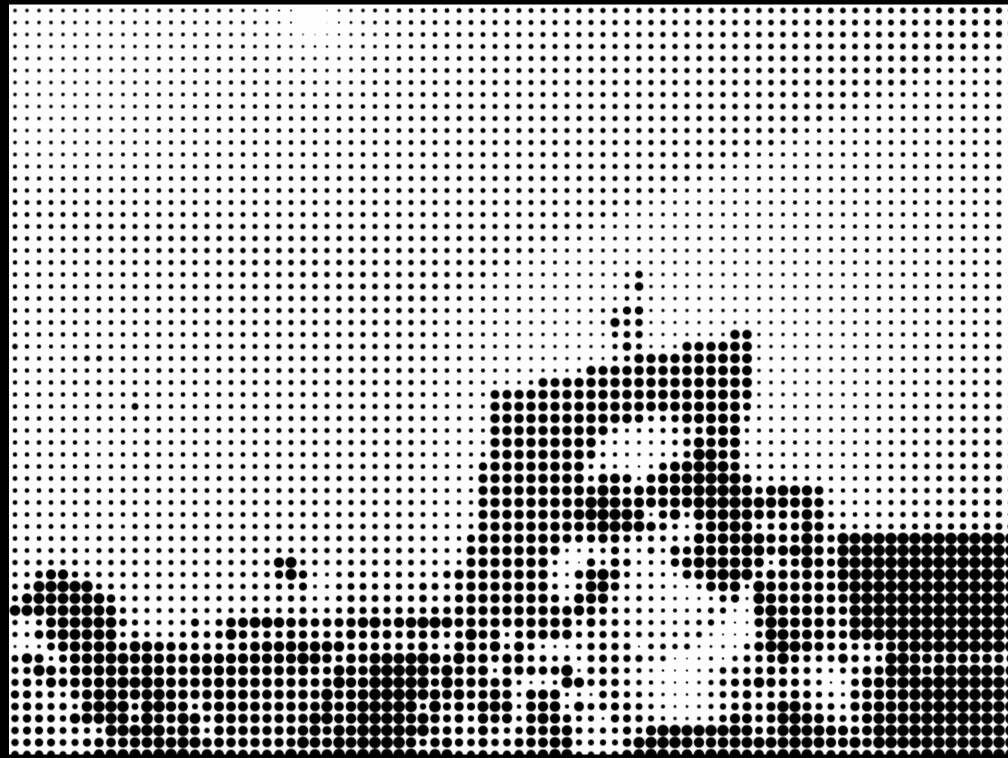

 Circle halftones |

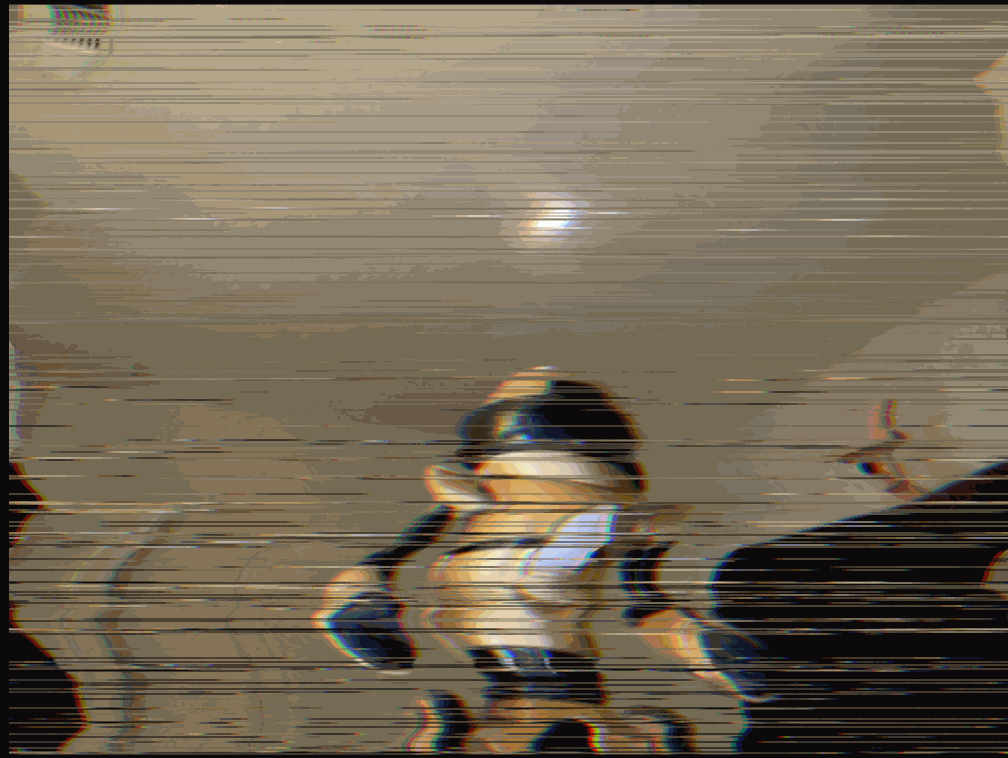

 Bad Cable |

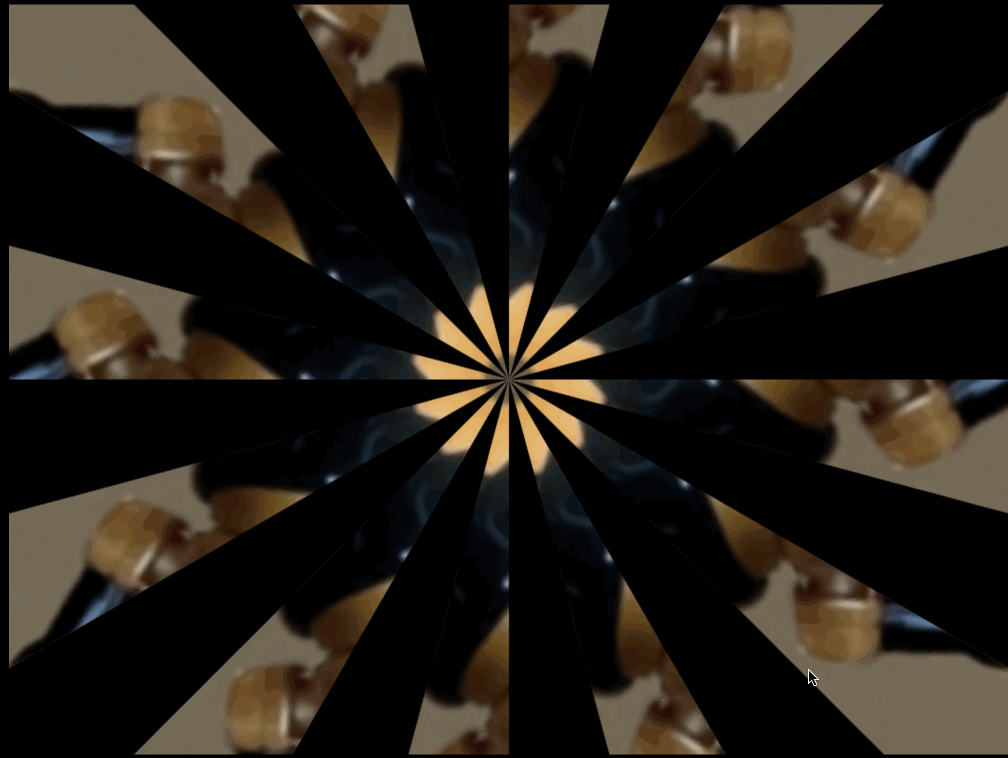

 Kaleidoscope |

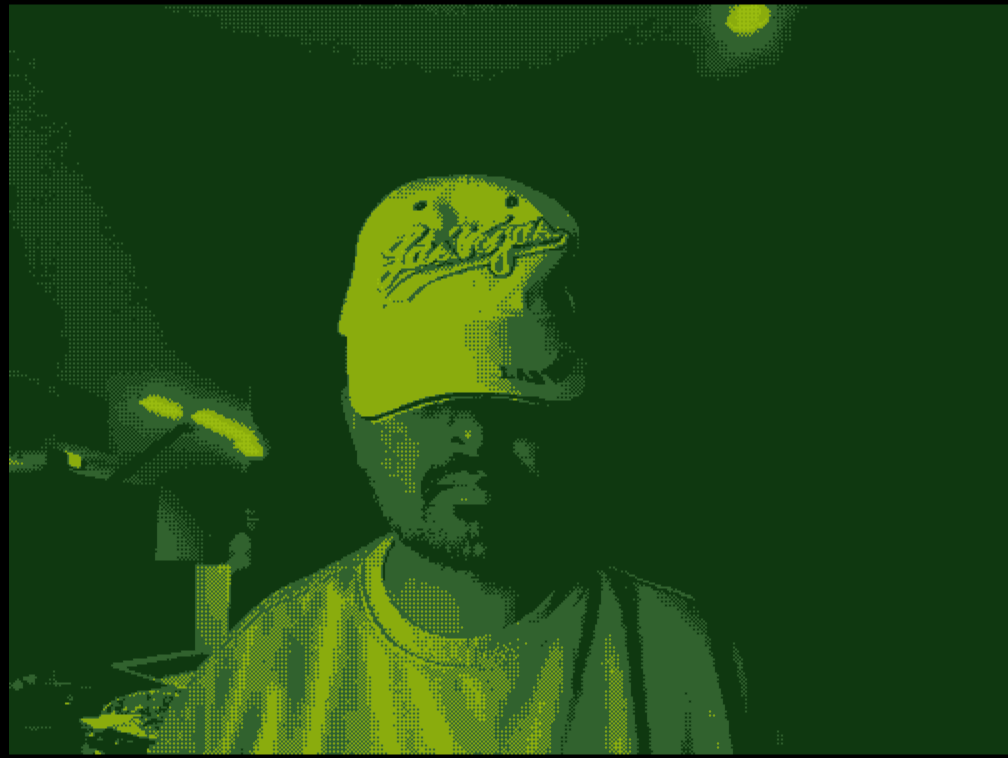

 Gameboy Camera |

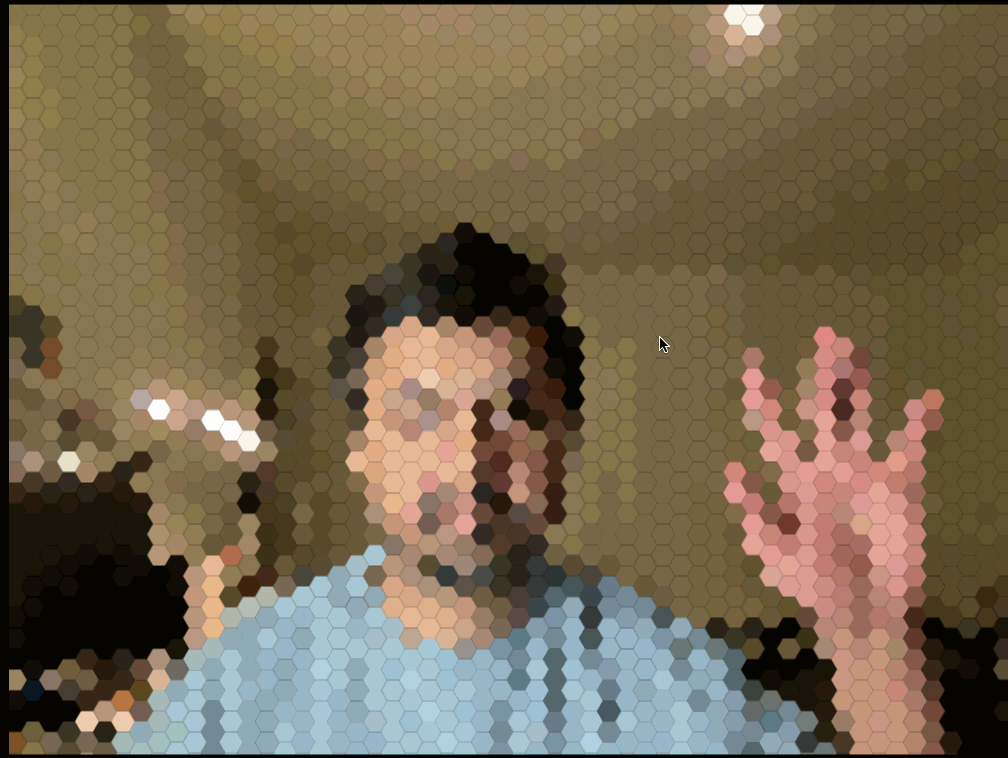

 Hex Mosaic |
Available Effects
The latest version of this library contains 108 effects grouped into the following categories:
Pixelation & Grid Systems
1. ASCII Matrix: Maps pixel brightness to characters.
5. Standard Pixelate: Reduces resolution by sampling colors at larger intervals.
6. Circle Halftone: Maps pixel brightness to the diameter of black circles on a white grid.
7. Line Halftone: Uses varying line thicknesses to represent brightness.
9. Hexagonal Mosaic: Samples colors into a honeycomb grid.
10. Triangle Mesh: Divides the screen into equilateral triangles filled with average color.
11. RGB Split Grid: Displays R, G, and B channels as separate sub-pixels side-by-side.
14. Quantized Dot Matrix: Fixed-size dots that turn on/off based on a brightness threshold.
16. Brick Wall: Staggered rectangles filled with the average color of that region.
19. Adaptive Quadtree: Recursively divides squares into smaller squares only in areas of high contrast.
79. Triangle Halftone: Maps pixel brightness to the size of triangles in a grid.
Color & Light Manipulation
2. RGB Channel Split: Offsets red/blue channels based on mouse position.
20. Solarization: Inverts pixel values only above a certain brightness threshold.
21. Posterization: Reduces the color palette to a few distinct bands.
22. Heatmap Mapping: Maps grayscale brightness to a blue-green-red gradient.
23. Sepia Tone: Applies a brown-orange tint to a desaturated image.
24. Duotone: Maps shadows to one specific color and highlights to another.
25. Inverted Luma: Inverts brightness while keeping hue intact.
26. Threshold: Converts image to strict black and white based on a cutoff.
28. Color Isolation: Turns the image grayscale except for one specific hue.
29. Luma Keying: Makes pixels transparent if they are too bright/dark.
30. False Color: Swaps RGB channels (e.g., Red becomes Blue).
31. Contrast Stretch: Expands the range of brightness values to cover the full spectrum.
32. Vignette Blur: Blurs and darkens the edges of the frame while keeping the center sharp.
33. Neon Glow: Detects bright areas and adds a blurred bloom effect around them.
34. CMYK Separation: Simulates misaligned cyan, magenta, yellow, and black printing plates.
Geometry & Distortion
4. Kaleidoscope: Radial mirror pattern.
13. Delaunay Triangulation: Connects random points to form triangles, colored by the centroid.
15. Concentric Circles: The image is constructed from concentric rings of varying colors.
35. Mirror Symmetry: Splits the screen vertically/horizontally and reflects one side.
36. Fish-Eye Lens: Bulges the center of the image outward.
37. Pinch Distortion: Sucks pixels toward a specific point (mouse position).
38. Swirl: Rotates pixels around the center, with more rotation at the core.
39. Sine Wave Ripple: Displaces pixels horizontally based on a sine wave function.
41. Slit-Scan (Spatial): Stretches the center vertical line of pixels to the edges.
44. Polar Coordinates: Maps the Cartesian (x,y) image into a circle.
45. Droste Effect: Recursively places the video frame inside itself.
47. Barrel Distortion: Squeezes the edges of the image inward.
48. Liquid Displacement: Uses Perlin noise to warp pixel coordinates smoothly.
101. Shape Packing: Packs non-overlapping circles into bright areas.
Time, Motion & Feedback
3. Scanline Slit-Scan: Time displacement effect.
49. Motion Blur: Blends the current frame with the previous 5 frames with opacity.
50. Ghosting / Trails: Only updates the background slowly, leaving trails of moving objects.
51. Slit-Scan (Temporal): Each column of pixels comes from a different point in time.
52. Frame Delay Grid: A grid of videos, each delayed by 1 second more than the last.
53. Motion Detection: Subtracts the previous frame from the current one to show only movement.
54. RGB Delay: Shows Red channel instantly, Green with 5-frame delay, Blue with 10-frame delay.
55. Video Feedback: Draws the previous frame slightly zoomed in and rotated.
56. Pixel Accumulation: Pixels “pile up” at the bottom if they are dark (physics simulation).
57. Freeze Frame Mask: Freezes parts of the screen that haven’t moved in X seconds.
58. Time Displacement Map: Uses a grayscale map to determine which “time” (past frame) to sample from.
59. Optical Flow Particles: Particles flow in the direction of movement detected in the video.
60. Frame Averaging: Averages the last 100 frames to remove moving objects entirely.
61. Stroboscope: Only updates the video frame every X milliseconds.
62. Decay: Bright pixels fade to black slowly over time.
Painterly & Stylized
8. Cross-Hatch: Layers perpendicular lines; density increases with darkness.
12. Voronoi Stained Glass: Cells grow from random seeds, colored by the underlying pixel.
17. Sine Wave Modulation: Rows of sine waves where amplitude is driven by pixel brightness.
64. Pointillism: Draws random colored circles; density is higher in detailed areas.
65. Oil Painting: Scans local neighborhoods and outputs the most frequent color (Kuwahara filter).
66. Watercolor: Layers semi-transparent blobs of color with jagged edges.
67. Impasto: Uses brightness to simulate thick paint strokes with “height”.
68. Charcoal: High contrast edge detection with added grain noise.
69. Mosaic Tiles: Irregular polygonal shapes with thick mortar lines between them.
70. Stained Glass (Glow): High saturation Voronoi cells with a bloom filter.
71. Spray Paint: Random splatter particles appear where the image is darkest.
72. Cubism: Overlays multiple perspectives or shifted blocks of the image.
73. Ink Wash: Converts to grayscale and simulates ink diffusion/bleeding.
74. Pastel: Softens colors and adds a rough paper texture overlay.
75. Pencil Hatching: Uses generated flow fields to direct pencil strokes along image contours.
76. Palette Knife: Smears pixels horizontally based on brightness.
78. Paper Cutout: Quantizes color and adds slight drop shadows to color blobs.
80. Stipple: Random dots where density increases with darkness.
Glitch & Digital Artifacts
18. Binary Noise: Random black/white pixels; probability of white is tied to source brightness.
27. Bit-Crush Color: Reduces color depth (e.g., 3-bit color) for a retro look.
40. Pixel Sort: Sorts pixels in a row/column by brightness.
42. Broken Glass: Voronoi cells that displace the image inside them slightly.
43. Scanline Displacement: Shifts every other horizontal line left or right.
46. Tile Scramble: Breaks image into a grid and randomly swaps tile positions.
81. JPEG Artifacts: Intentionally compresses blocks to create blocky noise.
82. Data Moshing: Freezes I-frames while moving P-frames (smearing movement).
83. Scanlines: Adds horizontal black lines that scroll slowly.
84. Static Noise: Adds random colored noise on top of the signal.
85. Channel Shift: Randomly offsets R, G, and B channels horizontally.
86. Vertical Hold: Simulates the screen rolling vertically.
87. Block Scramble: Randomly swaps rectangular chunks of the screen.
88. Color Banding: Reduces gradients to harsh bands of color.
89. Interlace Artifacts: Draws even lines from current frame, odd lines from previous frame.
90. Sync Failure: Bends the top of the image horizontally.
107. Bad Cable: Randomly drops the sync signal, causing the image to roll or shear horizontally.
Edge & Line Detection
77. Blueprint: Inverts to blue background with white edge lines.
91. Sobel Edge Detection: Highlights areas of high contrast (standard outline).
92. Canny Edges: Thinner, cleaner lines than Sobel.
93. Difference Edges: Subtracts a blurred version of the image from the sharp one.
94. Neon Edges: Edge detection colored by the original pixel hue.
95. Inverted Outline: White background, black lines.
96. Topographic Lines: Draws contour lines at specific brightness steps.
97. Flow Field Lines: Lines follow the “gradient” of pixel brightness.
98. Wireframe: Connects grid points if their brightness difference is high.
Typography & Symbolic
99. Text Rain: Falling letters interact with the brightness of the video.
100. Binary Stream: Replaces image with streaming 1s and 0s, green on black.
Biological & Organic Patterns
63. Difference Clouds: Multiplies the video feed by Perlin noise that evolves over time.
102. Cell Division: Voronoi cells that split into two smaller cells when the underlying movement is detected.
103. Lichen Growth: Diffusion-limited aggregation (DLA) where branches grow only on dark pixels.
104. Reaction-Diffusion: Simulates chemical pattern formation (Gray-Scott model) seeded by image brightness.
Retro-Futurism & CRT
105. Gameboy Camera: Strict 4-color palette (Dark Green, Green, Light Green, White) with dithering.
106. Vector Display: Detects edges and draws them as bright, glowing vector lines, ignoring fills.
108. Night Vision: High contrast green monochrome with added film grain and a vignette.
License
https://opensource.org/license/mit
NOTE: Parts of this project were vibe-coded with Google Gemini 3
